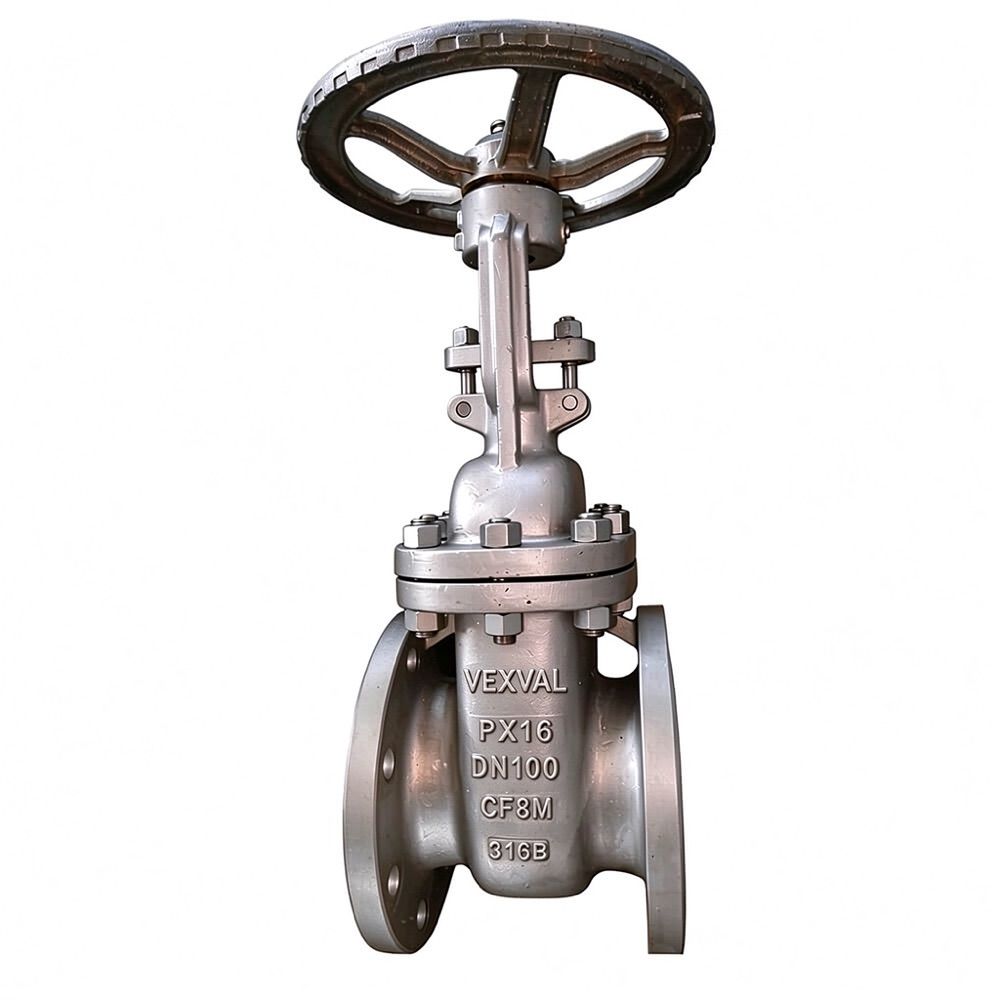

Stainless Steel Gate Valve 1
Gate Valves

Stainless Steel Gate Valve

Price:Quoted by size, pressure rating, body material and configuration
  • Size RangeDN50 – DN300 (2″ – 12″)
  • Pressure ClassASME Class 150 / 300 (PN 20 / PN 50)
  • Body MaterialCF8 / CF8M
  • Gate / Seating Surface316 stainless steel / 13Cr hardfacing
Inquire Now WhatsApp

Our Products

The stainless steel gate valve (Stainless Steel Gate Valve) uses a CF8/CF8M stainless steel body and is intended for shutoff of water, acids, alkalis and other corrosive media, combining the low flow resistance of a gate valve with the corrosion resistance of stainless steel. It uses a wedge gate with rising-stem or non-rising-stem construction; the seating surface can be soft-seated or hardfaced with 13Cr/316 weld overlay, and the end connections are flanged or threaded. It is widely used in corrosive service in chemical, pharmaceutical, food and seawater applications.

Features

· CF8/CF8M stainless steel body, corrosion resistant · Wedge gate, low flow resistance · Rising stem (OS&Y) / non-rising stem (NRS) construction available · Seating surface hardfaced with 13Cr/316 or stainless steel body seat · Flanged or threaded end connections · Suitable for acid, alkali and seawater service

Technical Specifications

Size Range
DN50 – DN300 (2″ – 12″)
Pressure Class
ASME Class 150 / 300 (PN 20 / PN 50)
Body Material
CF8 / CF8M
Gate / Seating Surface
316 stainless steel / 13Cr hardfacing
Stem
316 stainless steel
End Connection
RF flange / threaded
Temperature Range
−29 ~ +425 °C
Design Standard
API 600 / GB/T 12234 / ASME B16.34
Operation
Handwheel / gearbox

Applications

For corrosive media piping in chemical, pharmaceutical, food, desalination and environmental protection plants, used for shutoff of acids, alkalis, salt solutions and seawater.
