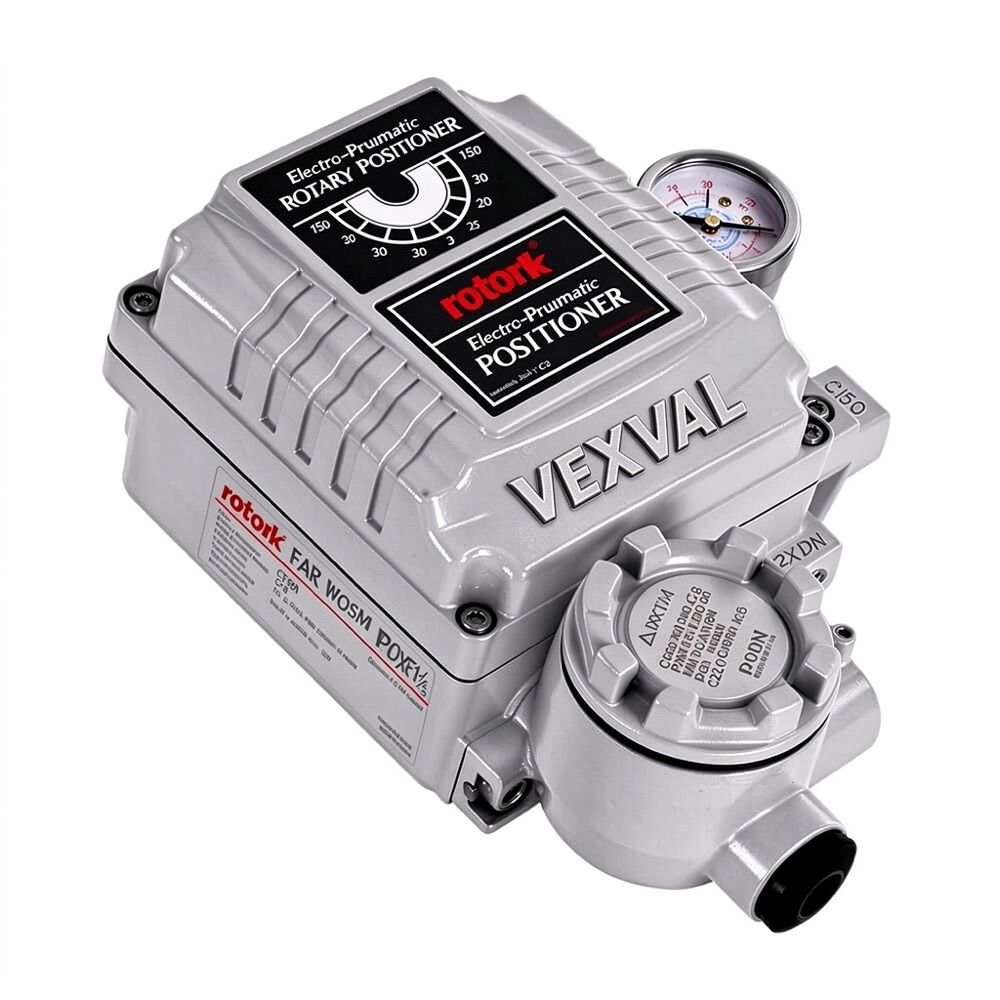

Valve Positioner
Price:Quoted by size, pressure rating, body material and configuration
- Input signal4 – 20 mA DC
- Output signalPneumatic signal (per actuator interface)
- Action typeSingle acting / double acting
- Communication protocolHART (smart version)
Our Products
The Valve Positioner receives a signal from the control system and performs closed-loop correction based on valve position feedback, outputting a pneumatic signal to drive the actuator so that the valve position follows the setpoint precisely and quickly. It is a key accessory for control valve accuracy.
The electro-pneumatic positioner accepts a 4–20 mA signal and uses a cam or feedback lever for precise stroke control, with zero and span adjustment, split-range control and characteristic correction. The smart version supports HART communication and self-diagnostics.
Features
· Closed-loop control, valve position follows the control signal precisely
· Accepts 4–20 mA signal, accurate electro-pneumatic conversion
· Adjustable zero and span, split-range control supported
· Improves control valve response speed and accuracy
· Smart version supports HART communication and self-diagnostics
· Easy to mount, fits a wide range of actuators
Technical Specifications
Input signal
4 – 20 mA DC
Output signal
Pneumatic signal (per actuator interface)
Action type
Single acting / double acting
Communication protocol
HART (smart version)
Supply air pressure
1.4 – 4 bar (standard)
Protection class
IP66
Mounting
Integral mounting with actuator bracket
Temperature range
−20 to +70 °C
Applications
For precise valve position control of pneumatic control valves, widely used in process control loops of chemical, refining, power and district heating systems.
