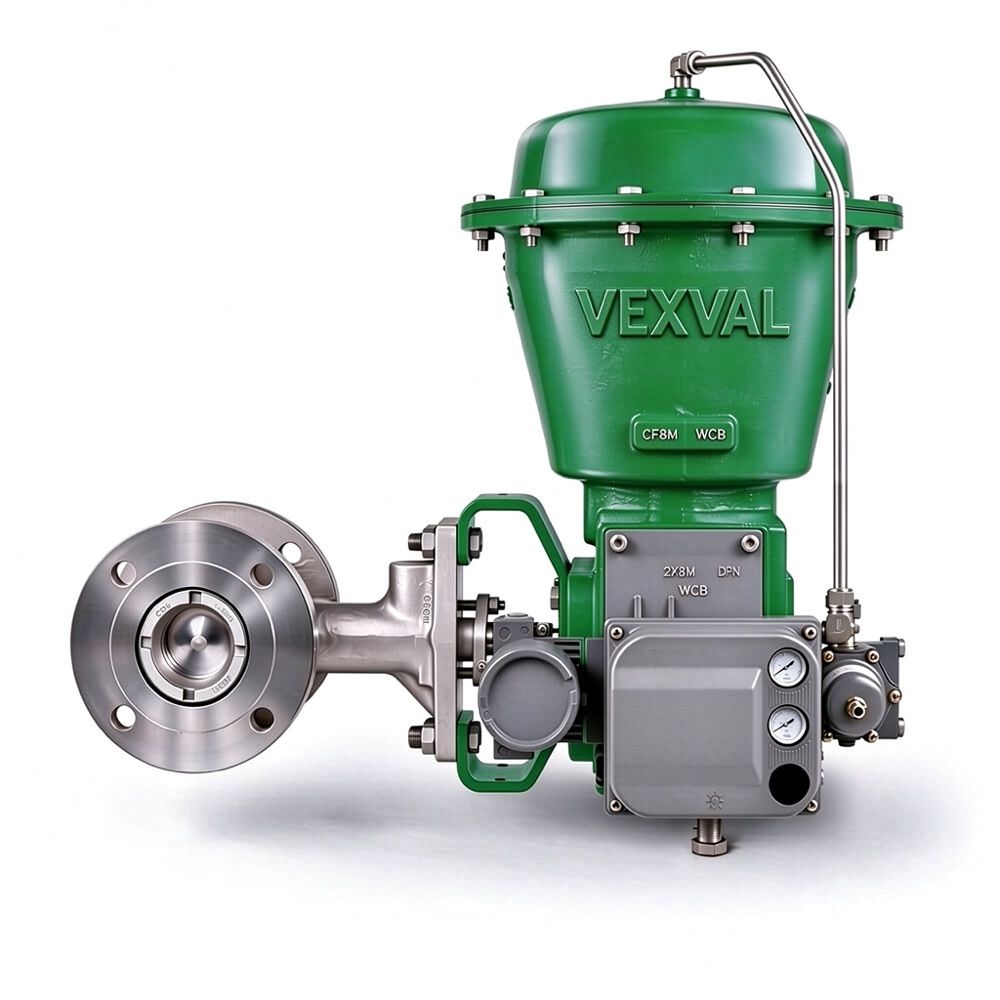

Rotary Eccentric Control Valve 1
Control Valves & Safety Valves

Rotary Eccentric Control Valve

Price:Quoted by size, pressure rating, body material and configuration
  • Size rangeDN25 – DN300 (1″ – 12″)
  • Pressure classASME Class 150 – 600 (PN 20 – PN 100)
  • Body materialWCB / CF8 / CF8M
  • PlugV-shaped 316 stainless steel (hardening optional)
Inquire Now WhatsApp

Our Products

The Rotary Eccentric Control Valve uses an eccentric rotary plug that both rotates and moves eccentrically, so the plug lifts clear of the seat during opening and closing without rubbing, combining the high capacity of a rotary valve with the shutoff performance of a control valve. The plug port is V-shaped and provides an approximately equal-percentage flow characteristic; its strong shearing action suits the control of fibrous, particulate and viscous media. The valve is suitable for pulp, wastewater and chemical slurry duties that are prone to clogging.

Features

· Eccentric rotary plug, friction-free opening and closing, long seat life · V-shaped port, high capacity, strong shearing action · Suitable for fibrous, particulate and viscous media · Soft-seated seat for reliable shutoff · Approximately equal-percentage flow characteristic · Pneumatic / electric actuator options

Technical Specifications

Size range
DN25 – DN300 (1″ – 12″)
Pressure class
ASME Class 150 – 600 (PN 20 – PN 100)
Body material
WCB / CF8 / CF8M
Plug
V-shaped 316 stainless steel (hardening optional)
Seat
Soft seat / metal seat
Flow characteristic
Approximately equal percentage
End connection
RF flange
Temperature range
−29 to +425 °C (depending on seat)
Design standard
IEC 60534 / GB/T 17213
Actuator
Pneumatic / electric

Applications

For flow control of paper pulp, wastewater treatment, chemical slurries and solids-laden media, especially where resistance to clogging and strong shearing action are required.
