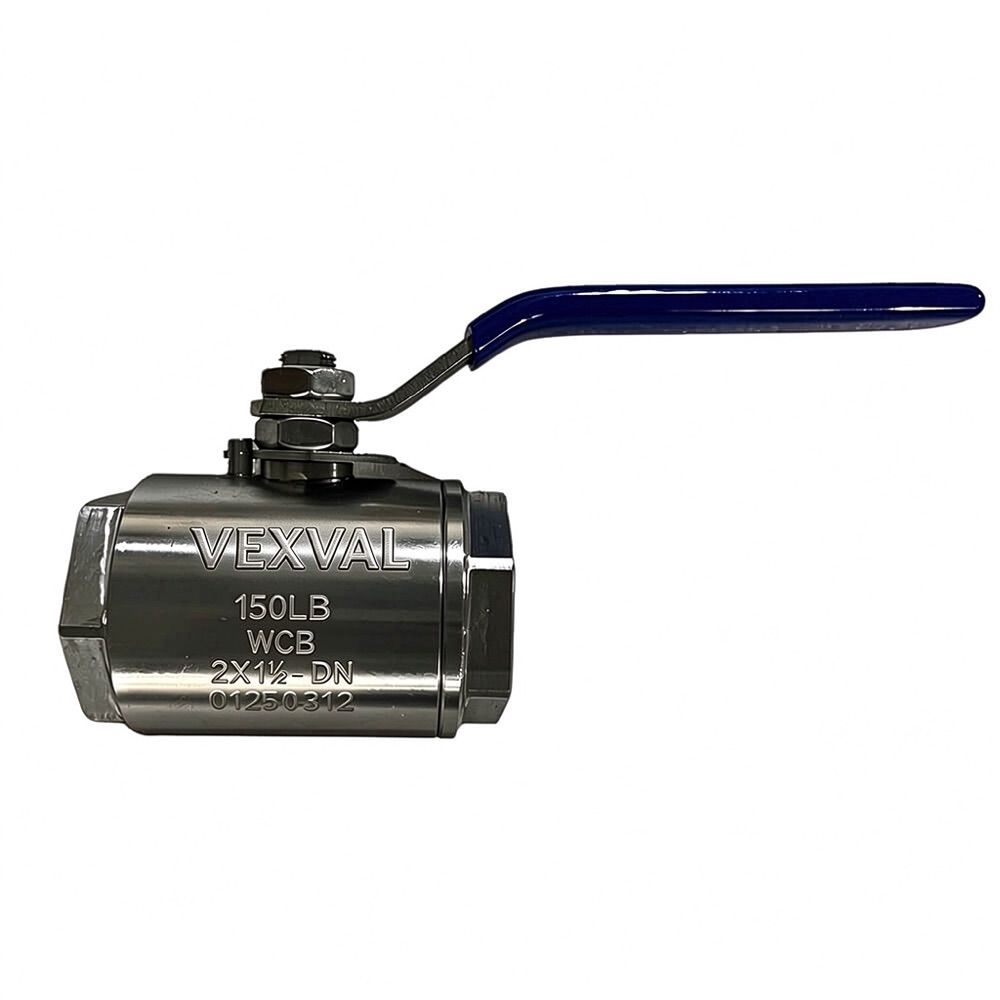

Threaded Ball Valve 1
Ball Valves

Threaded Ball Valve

Price:Quoted by size, pressure rating, body material and configuration
  • Size rangeDN8 – DN50 (1/4″ – 2″)
  • Pressure classASME Class 1000 / PN 63
  • Body materialCF8M / WCB
  • Ball / stem316 stainless steel
Inquire Now WhatsApp

Our Products

Threaded ball valves use NPT or BSP tapered pipe threads, eliminating flanges and gaskets. They are compact and low-cost, and are the most widely used ball valve type in threaded piping systems. The valve uses a one-piece or two-piece body with a floating ball and full bore, sealed by soft seats. Threads are machined to ASME B1.20.1 (NPT) or ISO 228 (BSP). Note that NPT and BSP threads differ in thread form and taper and are not interchangeable; the thread standard should be stated clearly in the enquiry.

Features

· NPT/BSP threaded connection: compact and low cost · One-piece or two-piece floating ball, full bore · Soft-seat zero leakage · Anti-blowout stem and anti-static design · Optional fully welded or split body · Lever, pneumatic or electric operation

Technical Specifications

Size range
DN8 – DN50 (1/4″ – 2″)
Pressure class
ASME Class 1000 / PN 63
Body material
CF8M / WCB
Ball / stem
316 stainless steel
Seat
PTFE / RPTFE
End connection
NPT / BSP thread
Temperature range
−29 ~ +180 °C (soft seat)
Design standard
ASME B16.34 / MSS SP-110
Operation
Lever / pneumatic / electric

Applications

For small-bore water, oil, gas and mildly corrosive media lines, commonly used in instruments, equipment packages and compressed air systems.
