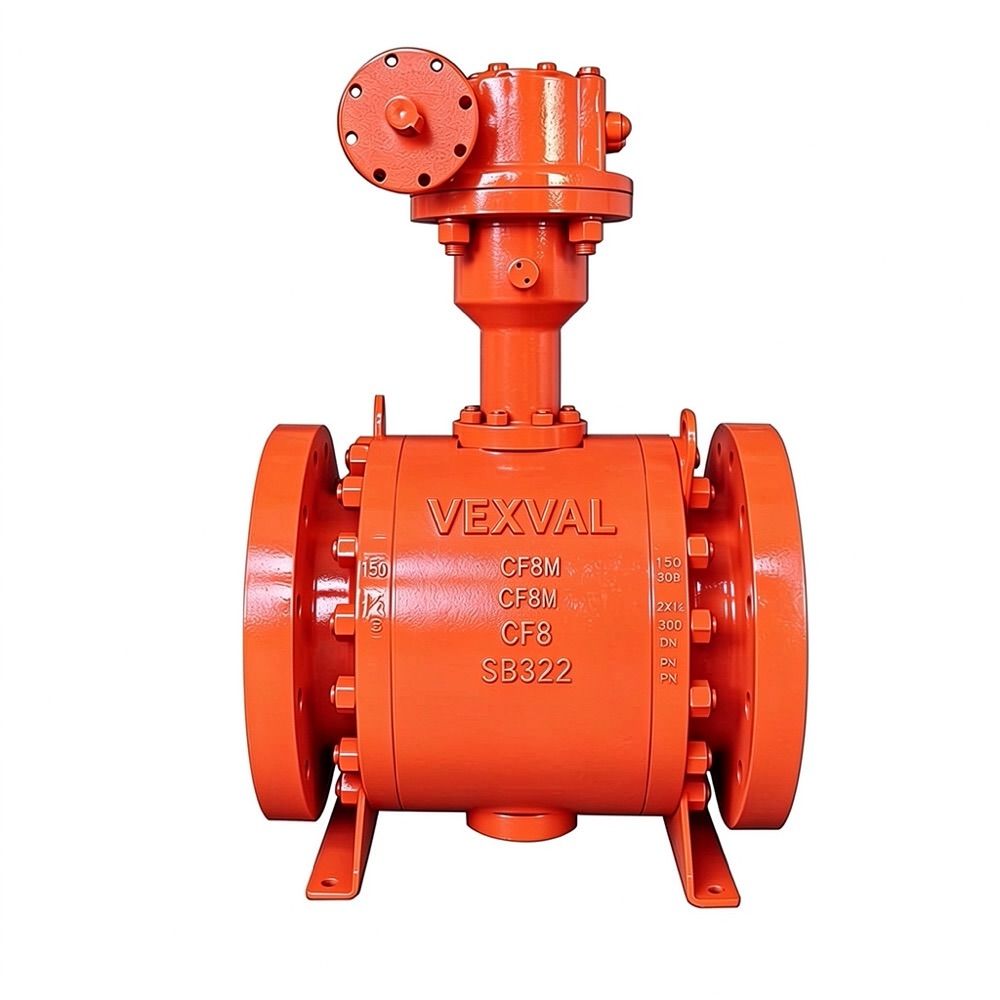

Trunnion-Mounted Ball Valve

Price:Quoted by size, pressure rating, body material and configuration
  • Size rangeDN50 – DN1200 (2″ – 48″)
  • Pressure classASME Class 150 – 900 (PN 20 – PN 150)
  • Body materialWCB / CF8M / duplex 2205
  • Ball17-4PH or ENP carbon steel, surface hardened
Inquire Now WhatsApp

Our Products

Trunnion-mounted ball valves support the ball at both the stem and a bottom trunnion. Line thrust is carried by the trunnion and bearings instead of being transferred to the seats, so operating torque is low, pressure capability is high and large sizes are feasible. This is the mainstream construction for high-pressure, large-diameter pipeline ball valves. The design is full bore with bidirectional sealing and supports double block and bleed (DBB) and double isolation and bleed (DIB). Fire-safe (API 607/6FA) and anti-static (API 6D) features are provided, and the seats accept sealant injection for emergency sealing. End connections are flanged, butt-weld or fully welded; applications include oil and gas transmission pipelines, gathering stations and pigging operations.

Features

· Trunnion-mounted ball carries line thrust on the trunnion, keeping operating torque low · Full-bore design allows pig passage and supports pipeline pigging and in-line inspection · Bidirectional sealing enables DBB / DIB functions · Fire-safe design (API 607/6FA) with metal secondary seal after soft-seat burnout · Anti-static design with seat sealant injection for emergency sealing · Gearbox, pneumatic or gas-over-oil operation

Technical Specifications

Size range
DN50 – DN1200 (2″ – 48″)
Pressure class
ASME Class 150 – 900 (PN 20 – PN 150)
Body material
WCB / CF8M / duplex 2205
Ball
17-4PH or ENP carbon steel, surface hardened
Seat
PTFE / RPTFE / PEEK, metal seat optional
End connection
RF/RTJ flange (ASME B16.5 / B16.47) / butt weld BW
Temperature range
−29 ~ +200 °C (soft seat); low-temperature construction to −46 °C available on request
Design standard
API 6D / ISO 14313 / ASME B16.34
Fire-safe / anti-static
API 607, API 6FA / API 6D anti-static design
Operation
Gearbox / pneumatic / gas-over-oil

Applications

For oil and gas transmission pipelines, gathering stations, pump stations and metering and proving lines, providing high-pressure, large-diameter shutoff and pigging duty for crude oil, natural gas and refined products; a core product line for Vexval.
