Angle Globe Valve
Price:Quoted by size, pressure rating, body material and configuration
- Size RangeDN25 – DN300 (1″ – 12″)
- Pressure ClassASME Class 300 – 900 (PN 50 – PN 150)
- Body MaterialWCB / WC6 / CF8M
- Disc / Seating SurfaceStellite 6 / tungsten carbide hardfacing
Our Products

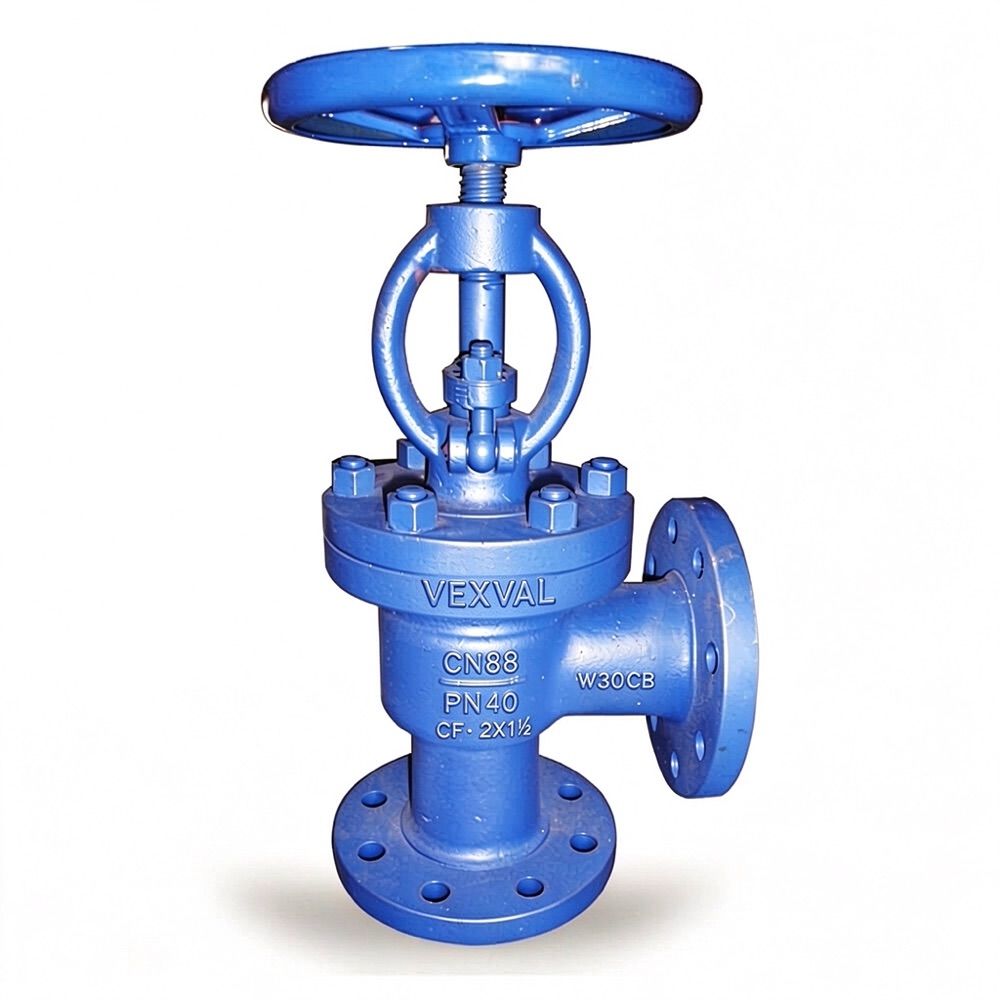

The angle globe valve has its inlet and outlet arranged at a 90° right angle, so the medium changes direction once inside the valve. The design is compact and can replace a pipe elbow directly, reducing fittings and welds.
The seating surface is usually hardfaced with a hard alloy, which suits media with high differential pressure, solids content or a tendency to coke, such as black water in coal chemical plants, coking units and high-pressure blowdown lines. Vertical installation keeps material from accumulating inside the valve and allows complete draining.
Features
· Inlet and outlet at a 90° right angle, acting as both valve and elbow
· Compact design, fewer pipe fittings and welds
· Seating surface hardfaced with a hard alloy, wear and erosion resistant
· Vertical installation resists material build-up and allows complete draining
· Suitable for high differential pressure and solids-laden media
· Handwheel / gearbox / electric operation
Technical Specifications
Size Range
DN25 – DN300 (1″ – 12″)
Pressure Class
ASME Class 300 – 900 (PN 50 – PN 150)
Body Material
WCB / WC6 / CF8M
Disc / Seating Surface
Stellite 6 / tungsten carbide hardfacing
End Connection
RF / RTJ flange
Temperature Range
−29 ~ +538 °C (depending on material)
Design Standard
API 623 / ASME B16.34
Operation
Handwheel / gearbox / electric
Applications
For black water and grey water lines in coal chemical plants, coking units, high-pressure blowdown and drain lines, used for shutoff and regulation of media with high differential pressure, solids content or a tendency to coke.
