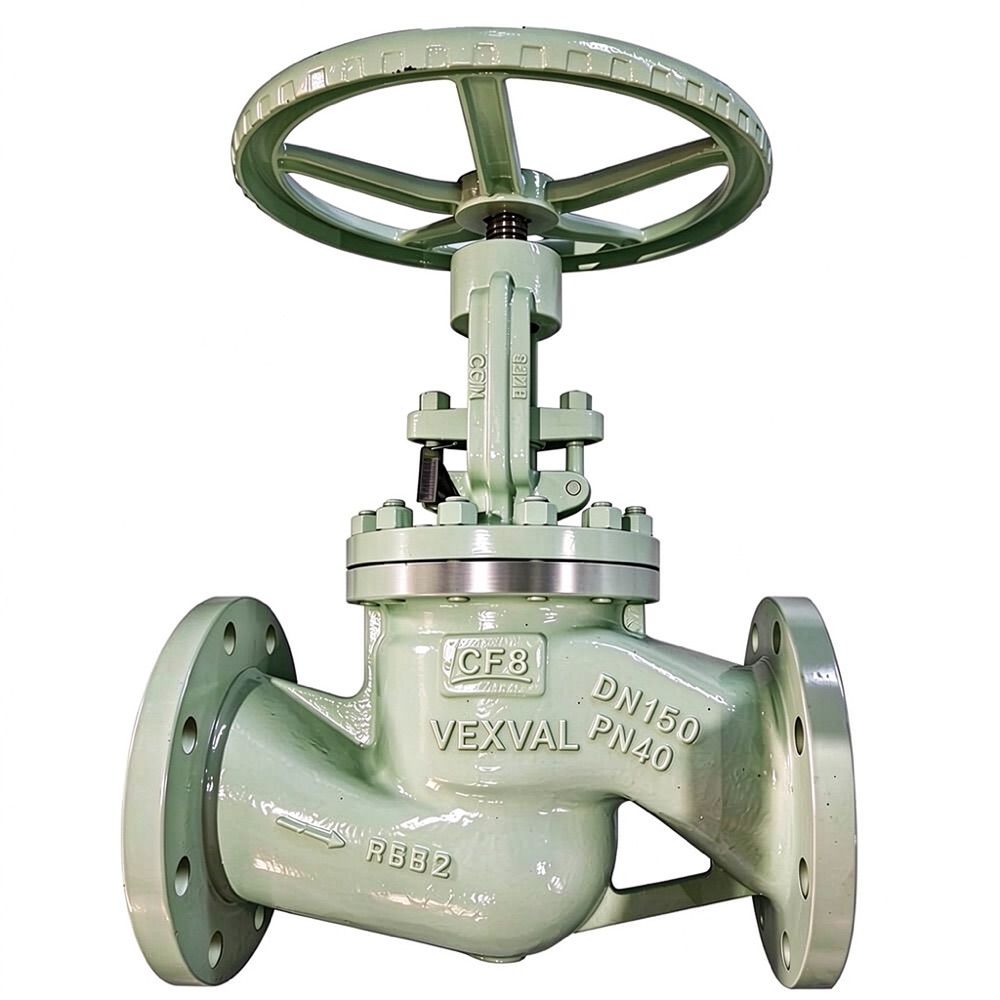

Flanged Globe Valve

The flanged globe valve opens, closes and regulates flow by lifting a plug-type disc along the seat centreline; the seating surfaces are a flat or conical pair, giving reliable sealing and easy maintenance. Compared with a gate valve, the flow passage of a globe valve is S-shaped, so flow resistance is higher, but the valve offers a degree of flow regulation. In the standard straight-through design, the body is usually closed by a bolted flanged bonnet, and the seating surface can be hardfaced with 13Cr (Trim 1), Stellite 6 (Trim 5) or Monel (Trim 8) to suit different media. It is used in small-bore steam, water and oil lines where tight shutoff and throttling are required.

· Plug-type disc lifts to open and close, reliable sealing, easy lapping and repair · Provides a degree of throttling control · Seating surface available as Trim 1/5/8/12 to suit the medium · Bolted flanged bonnet for easy maintenance · Flanged connection, to ASME B16.5 · Suitable for high-temperature, high-pressure steam and feedwater

For small-bore shutoff and throttling of steam, feedwater, oil and corrosive media in power stations, refining and chemical plants where sealing and control requirements are high.
