Y-Pattern Globe Valve 1
Globe Valves

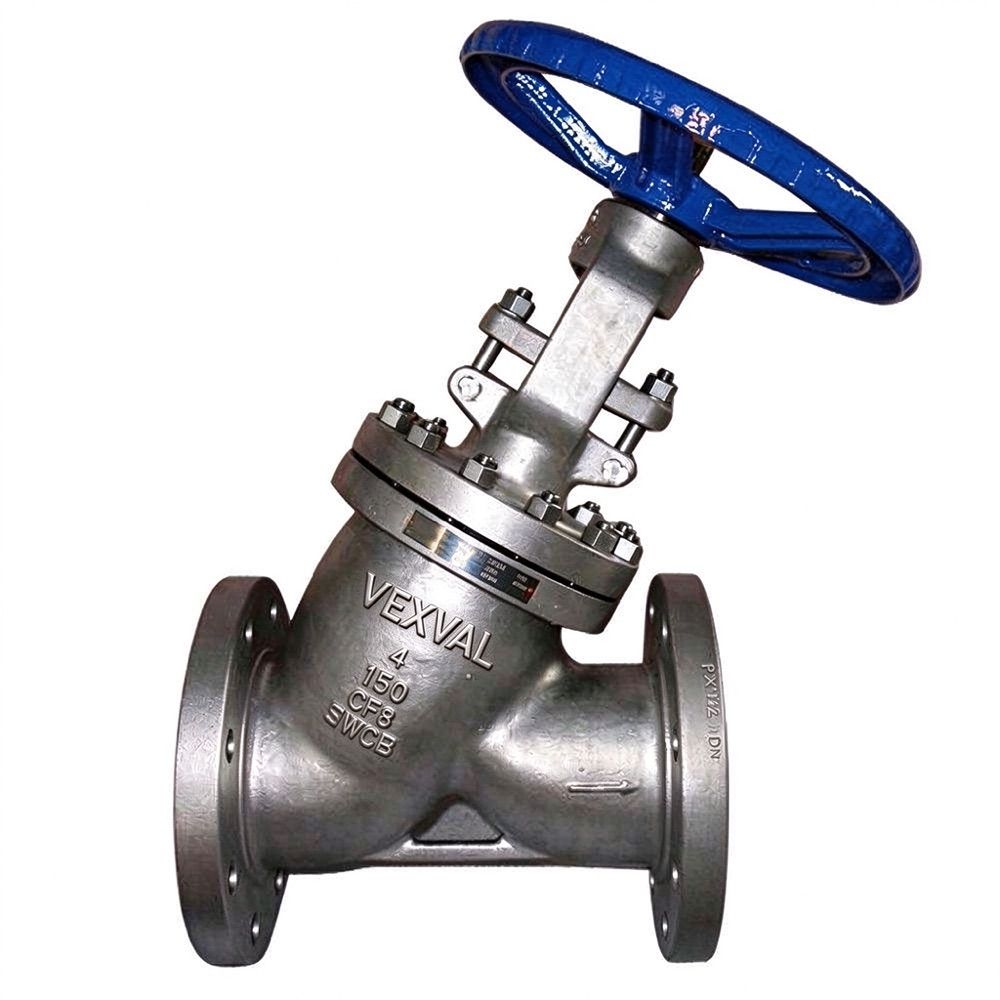

Y-Pattern Globe Valve

Price:Quoted by size, pressure rating, body material and configuration
  • Size RangeDN15 – DN350 (1/2″ – 14″)
  • Pressure ClassASME Class 150 – 600 (PN 20 – PN 100)
  • Body MaterialWCB / WC6 / CF8M
  • Disc / Seating Surface13Cr / Stellite 6 hardfacing
Inquire Now WhatsApp

Our Products

The Y-pattern globe valve (also called straight-through or oblique-stem globe valve) has its stem set at an angle to the body bore axis, so the medium passes through almost in a straight line and the flow resistance is only about one third that of a straight-through globe valve. It combines the sealing performance of a globe valve with flow resistance close to that of a gate valve. It is suitable for media that are highly viscous, high-velocity, prone to crystallisation or contain a small amount of solids, such as steam, heat-transfer oil and slurry lines, where it serves for shutoff and regulation. It is a common valve type for high-temperature, high-pressure steam blowdown and condensate systems.

Features

· Straight-through oblique-stem design, flow resistance about 1/3 of the straight-through type · Combines globe valve sealing with pressure loss close to a gate valve · Suitable for high-viscosity, crystallising and solids-laden media · Seating surface can be hardfaced with a hard alloy · Flanged or butt weld connections · Handwheel / gearbox / electric operation

Technical Specifications

Size Range
DN15 – DN350 (1/2″ – 14″)
Pressure Class
ASME Class 150 – 600 (PN 20 – PN 100)
Body Material
WCB / WC6 / CF8M
Disc / Seating Surface
13Cr / Stellite 6 hardfacing
End Connection
RF flange / butt weld BW
Temperature Range
−29 ~ +538 °C (depending on material)
Design Standard
API 623 / GB/T 12235 / ASME B16.34
Operation
Handwheel / gearbox / electric

Applications

For steam condensate and blowdown, heat-transfer oil, pulp and solids-laden media lines, especially where low pressure loss and high flow velocity are required.
