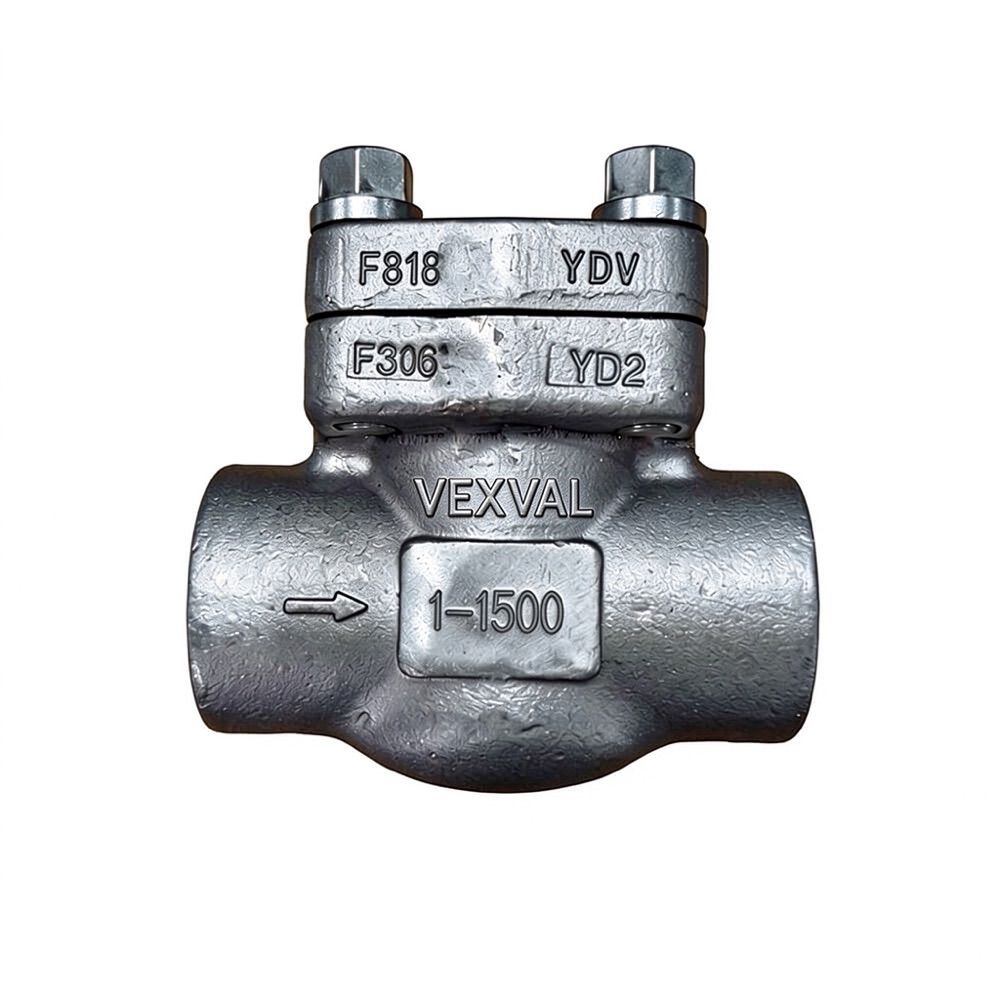

Ball Check Valve 1
Check Valves

Ball Check Valve

Price:Quoted by size, pressure rating, body material and configuration
  • Size rangeDN15 – DN200 (1/2″ – 8″)
  • Pressure classASME Class 150 – 600 (PN 20 – PN 100)
  • Body materialWCB / CF8 / CF8M
  • BallStainless steel / rubber-coated ball
Inquire Now WhatsApp

Our Products

The ball check valve uses a spherical ball as the closing member: forward flow pushes the ball off the seat, and on reverse flow the ball returns to the seat to seal. With no hinge or guide parts the design is simple and closing is reliable, making it suitable for media containing a small amount of solids. The ball may be metal or rubber-coated, and soft seating gives good sealing performance. The valve suits water, wastewater, oil and slurry lines, particularly where vibration is present or stable flow is required.

Features

· Spherical ball closing member: simple design, no hinge parts to jam · Reliable closing, suitable for media with a small amount of solids · Metal or rubber-coated ball available · Soft seat for good sealing performance · Flanged / threaded ends · Horizontal or vertical installation

Technical Specifications

Size range
DN15 – DN200 (1/2″ – 8″)
Pressure class
ASME Class 150 – 600 (PN 20 – PN 100)
Body material
WCB / CF8 / CF8M
Ball
Stainless steel / rubber-coated ball
Seat
Metal / soft seat
End connection
RF flange / threaded
Temperature range
−20 ~ +200 °C (soft seat)
Design standard
API 594 / ASME B16.34
Installation
Horizontal / vertical

Applications

For wastewater, slurry, oil and circulating water lines, providing backflow protection and pump outlet protection in media containing a small amount of solids.
