Swing Check Valve

Price:Quoted by size, pressure rating, body material and configuration
  • Size rangeDN50 – DN600 (2″ – 24″)
  • Pressure classASME Class 150 – 900 (PN 20 – PN 150)
  • Body materialWCB / CF8 / CF8M
  • Disc / seat sealing face13Cr / Stellite 6 weld overlay or soft seat
Inquire Now WhatsApp

Our Products

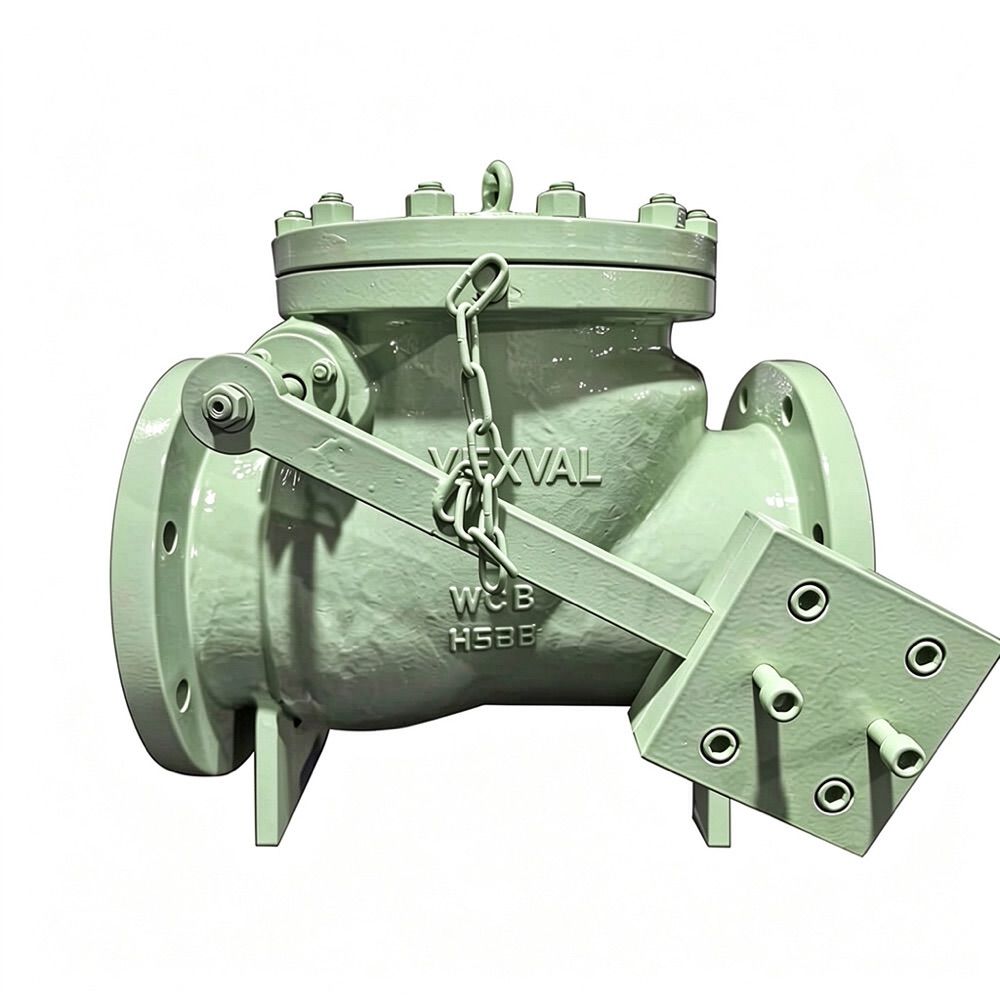

The swing check valve uses a disc hinged on the body as the closing member: forward flow pushes the disc open, and on reverse flow the disc falls back onto the seat under the action of the medium and its own weight to seal. The design is simple with low flow resistance, and it is the most widely used type of check valve. Flanged or butt-weld ends are available, with metal-to-metal or soft seating. The valve suits horizontal or vertical installation (flow upward) and is widely used at pump and compressor outlets and on pipelines where reverse flow must be prevented.

Features

· Hinged swing disc: low flow resistance, simple design · Opens on forward flow, closes automatically on reverse flow to prevent backflow · Metal or soft seating available · Horizontal or vertical installation (flow upward) · Flanged / butt-weld ends · Economical anti-backflow solution for large-diameter lines

Technical Specifications

Size range
DN50 – DN600 (2″ – 24″)
Pressure class
ASME Class 150 – 900 (PN 20 – PN 150)
Body material
WCB / CF8 / CF8M
Disc / seat sealing face
13Cr / Stellite 6 weld overlay or soft seat
End connection
RF/RTJ flange / butt weld (BW)
Temperature range
−29 ~ +425 °C (depending on material)
Design standard
API 594 / ISO 15761 / ASME B16.34
Installation
Horizontal / vertical (flow upward)

Applications

For pump and compressor outlets, pipelines and line sections where reverse flow is not permitted, providing one-way check service in water, oil, steam and gas.
