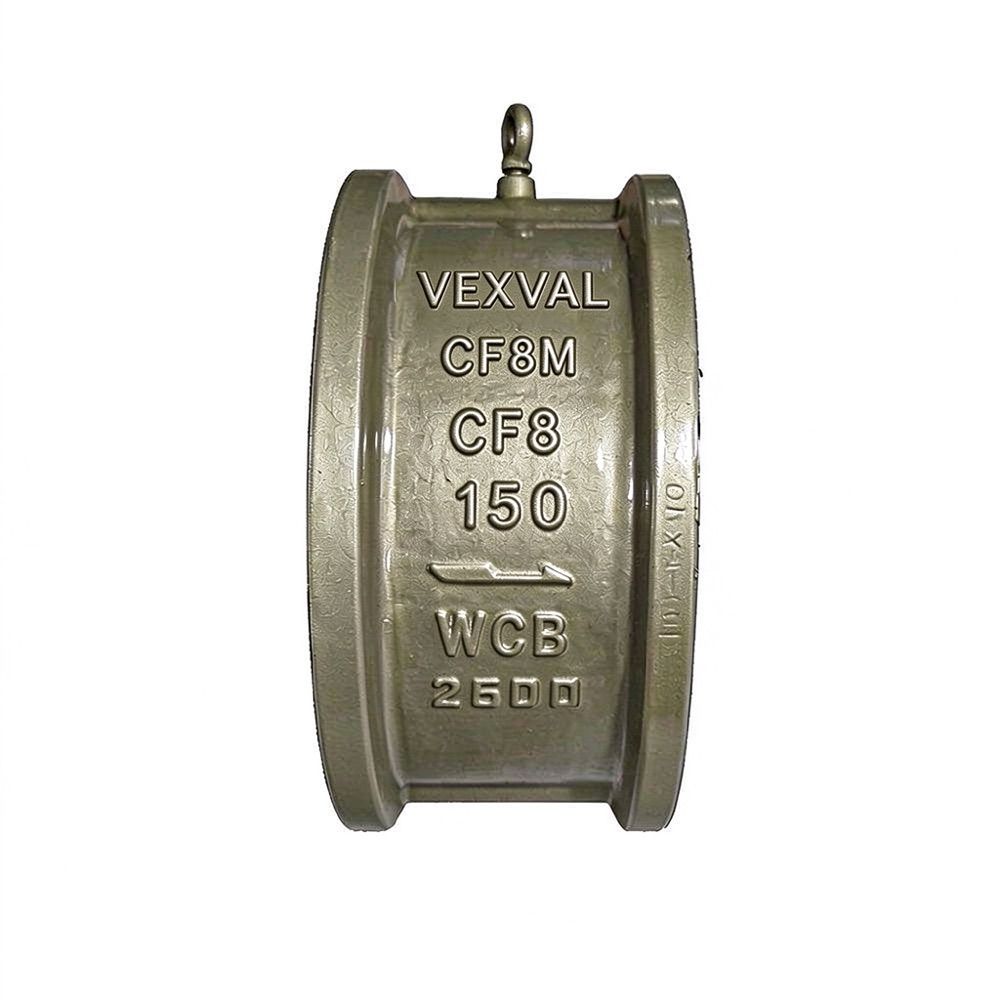

Wafer Dual-Plate Check Valve

Price:Quoted by size, pressure rating, body material and configuration
  • Size rangeDN50 – DN600 (2″ – 24″)
  • Pressure classASME Class 150 – 600 (PN 20 – PN 100)
  • Body materialWCB / CF8 / CF8M
  • Disc / seat sealing faceStainless steel / soft seat
Inquire Now WhatsApp

Our Products

The wafer dual-plate check valve uses two semicircular plates that are spring-returned and installed wafer-style between pipeline flanges. Its small size, light weight and short face-to-face length make it the ideal check valve for lines with limited installation space. The two plates close against each other at the centre; the opening stroke is short and response is fast, and a spring can be fitted for rapid closing to reduce water hammer. It suits compact backflow protection in water supply, drainage, circulating water and industrial lines. Design basis: API 594.

Features

· Dual-plate wafer design: small size, short face-to-face length · Spring return for fast closing and reduced water hammer · Wafer installation saves pipeline space · Low flow resistance, suitable for high-flow sections · Soft or metal seating available · Horizontal or vertical installation

Technical Specifications

Size range
DN50 – DN600 (2″ – 24″)
Pressure class
ASME Class 150 – 600 (PN 20 – PN 100)
Body material
WCB / CF8 / CF8M
Disc / seat sealing face
Stainless steel / soft seat
End connection
Wafer type
Temperature range
−29 ~ +200 °C (soft seat)
Design standard
API 594
Installation
Horizontal / vertical

Applications

For water supply and drainage, circulating water, fire protection and industrial lines with tight installation space, providing fast backflow protection at pump outlets and on pipelines.

Related Products

Ball Check Valve

The ball check valve uses a spherical ball as the closing member: forward flow pushes the ball off the seat, and on reverse flow the ball returns to the seat to seal. With no hinge or guide parts the design is simple and closing is reliable, making it suitable for media containing a small amount of solids. The ball may be metal or rubber-coated, and soft seating gives good sealing performance. The valve suits water, wastewater, oil and slurry lines, particularly where vibration is present or stable flow is required.

Read More →

Lift Check Valve

In the lift check valve the disc moves vertically along the seat centreline: forward flow lifts the disc, and on reverse flow the disc drops back onto the seat to seal. The design is compact, sealing is reliable and the closing stroke is short, making the valve suitable for small-diameter high-pressure lines. Vertical installation (flow upward) is normally required so that the disc reseats by gravity. Seating may be metal or soft. The valve is widely used at small-bore pump outlets and in steam and gas lines to prevent reverse flow.

Read More →

Swing Check Valve

The swing check valve uses a disc hinged on the body as the closing member: forward flow pushes the disc open, and on reverse flow the disc falls back onto the seat under the action of the medium and its own weight to seal. The design is simple with low flow resistance, and it is the most widely used type of check valve. Flanged or butt-weld ends are available, with metal-to-metal or soft seating. The valve suits horizontal or vertical installation (flow upward) and is widely used at pump and compressor outlets and on pipelines where reverse flow must be prevented.

Read More →
